Introducing Topcon new RL-H4C 3 in one laser

The RL-H4C has all the benefits of the old RL-H3 series all in one unit and more:

• Rechargeable and fast levelling as with the RL-H3A
• Slope with memory as with the RL-H3CS
• Long range and accurate as with the RL-H3CL























  Low cost and reliable as with the RL-H3C

  New features of the RL-H4C

  • Alignment Gun Sights in both axis
  • Dual Handles for left or right Hand Grip
  • Improved Battery Door Knob Latch
  • Improved sealing now IP66 Protection truly water and dust proof
  • Rechargeable batteries as standard
  • Battery can be removed without disturbing set up
  • Battery can be charged inside or outside laser
  • Dry cells can be used whilst batteries are being charged

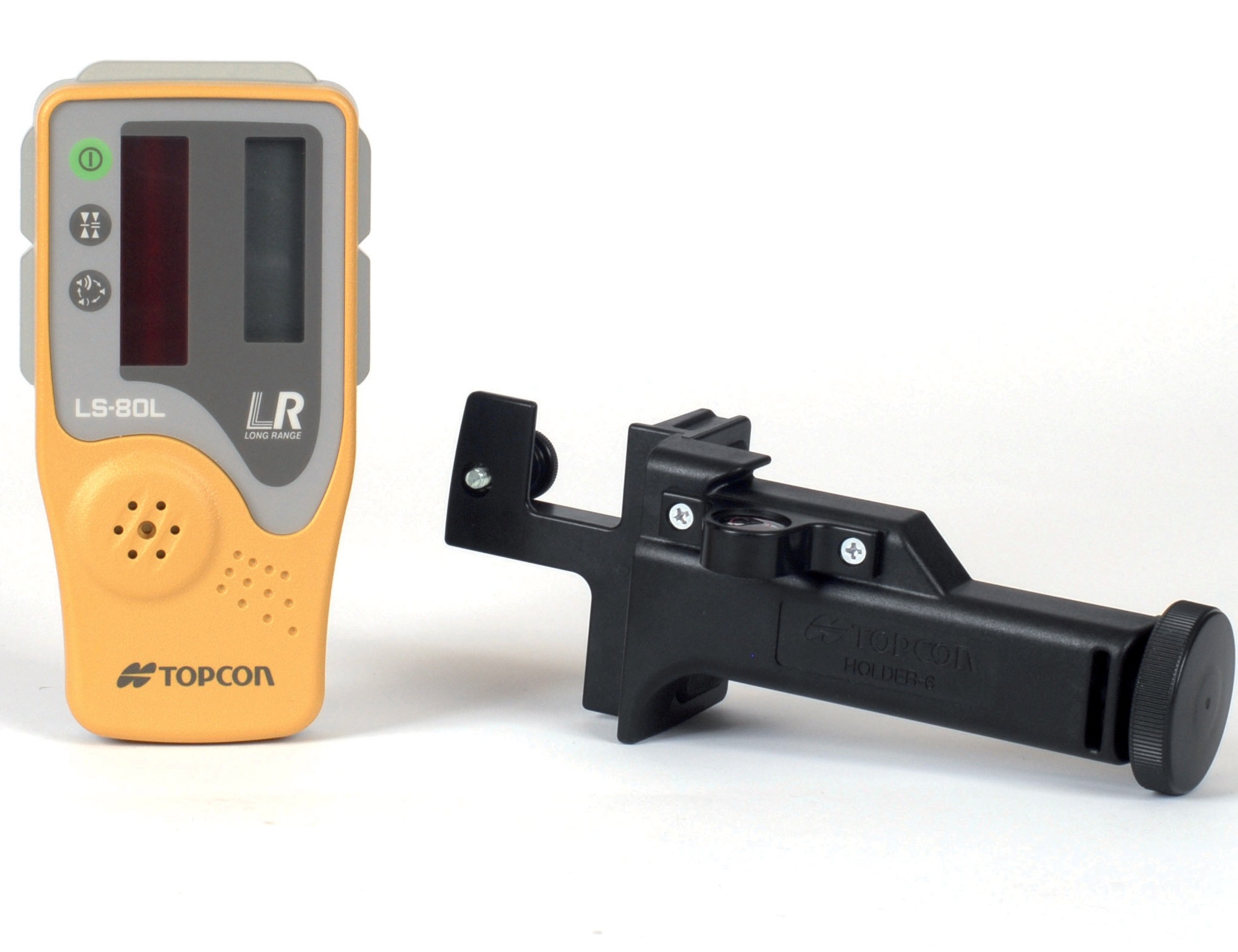

    New LS-80L Sensor

    • Long range sensor in excess of 800 metres
    • 2 way communication with laser giving height alert and low battery warning
    • 1mm fine / 2mm normal accuracy
    • Front and rear display
    • Segmented arrows giving millimetre settings of 5mm, 10mm and 15mm individual levels of grade
    • Auto shut off after 30 minutes
    • 80 hours battery life



      Benefits

      • Battery can be replaced without taking laser off the tripod
      • Battery pack can be charged outside the unit allowing the laser to be put into a secure lock-up during overnight charging.
      • Cross axis levelling active when setting or matching slope
      • Slope memory saving reset time after unit has been switched off
      • Laser sensor gives segmented mm arrow readings and communicates with the laser, giving the operator low battery and height alert warnings, hence reducing errors and rework.
      • Long range, 5% slope and 600 rpm rotation ideal for machine control applications
      • Topcon 5 year peace of mind warranty cover











        •









        Specifications

        RL-H4C

        1.2mm per 30m accuracy

        5 degree self leveling range

        60hrs laser battery life on one charge

        IP66 water proof



        LS-80L

        11 grade channels

        High precision (1mm) and normal precision (2mm) settings

        80hrs battery life

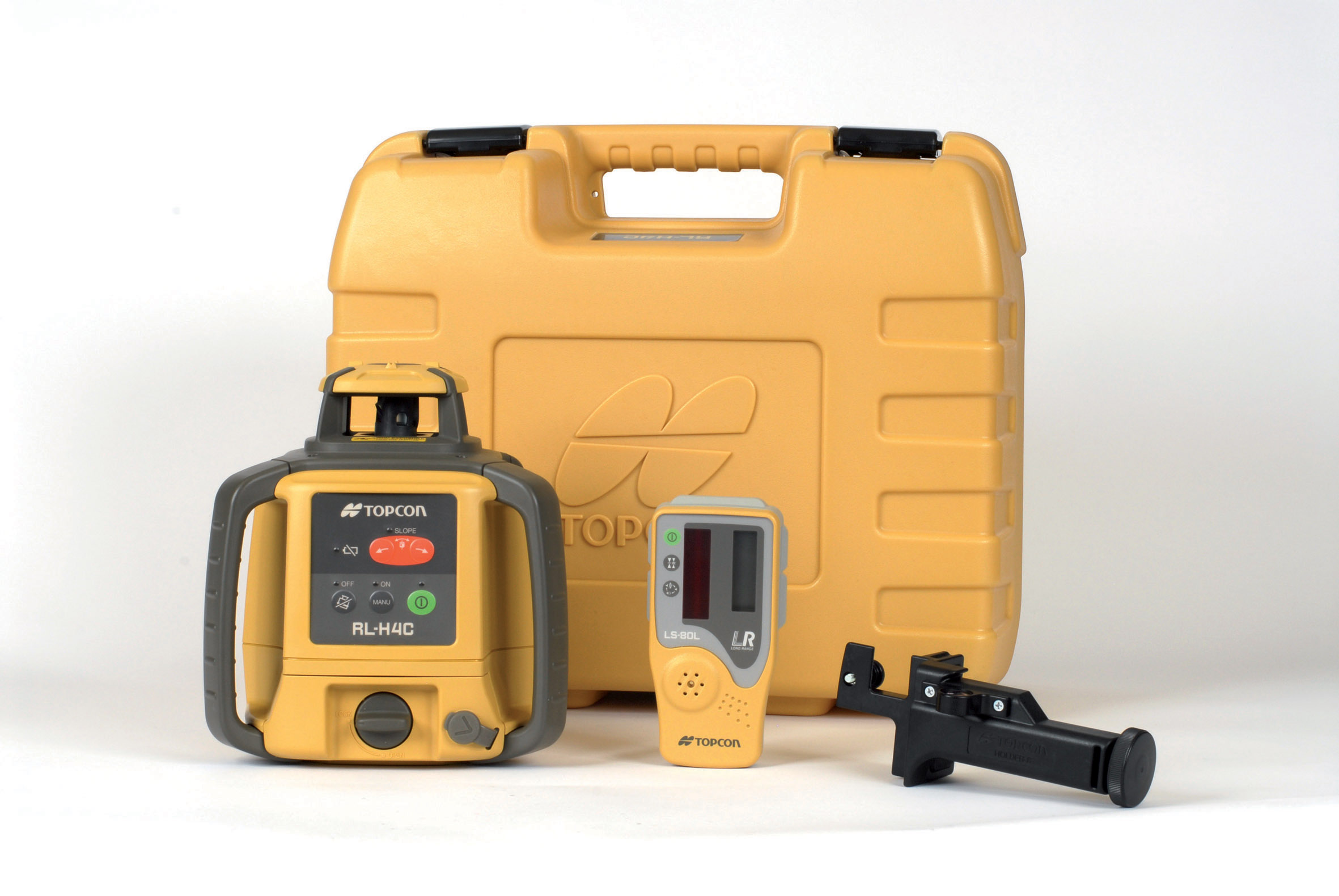

        Kit includes

        RL-H4C laser

        Battery pack

        Charger

        LS-80L detector

        Holder 6 bracket

        Rugged carry case
